How to use Domain Value Maps in Oracle Service Bus

Domain Value Maps (DVM) are an interesting feature of Oracle Service Bus for supporting Canonical Data Models. This help to map from one vocabulary, used in a given domain, to another vocabulary used in a different domain.
For example, Source system might represent a country with a code while target system may represent a country with the country Name.

Let’s see how to use DVM in Service Bus Project.

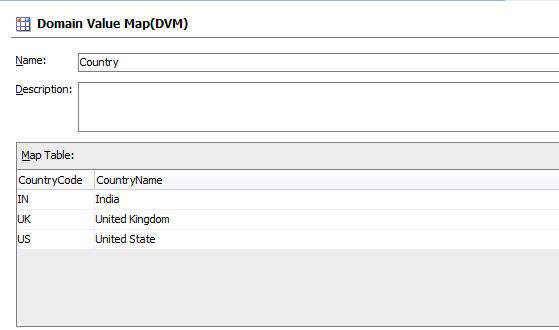

Let’s suppose we already have a Service Bus Project. In the project, create a DVM with name Country.dvm

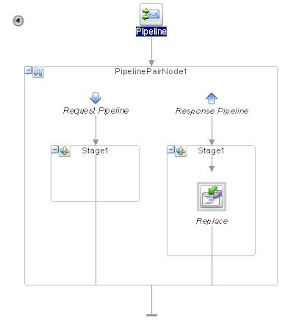

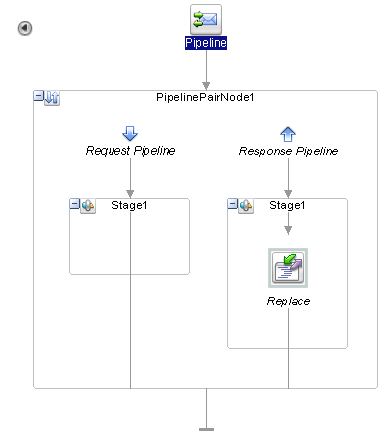

Below message flow show how to use DVM function to get the Country Name corresponding to the Country Code and if Country code not found then set a default message.


Click on the Replace activity in Response pipeline and configure provide expression as below:


lookup is the DVM function that is used to get value from DVM

The lookup function takes five parameter as below:

1) DVM Path: Location of the DVM file
2) Source Column: This parameter represents the source column in DVM, in this case CountryCode
3) Source Value: The parameter should map with the actual values coming from source system, in this case country code will be the input of our service
4) Target Column: This parameter represents the source column in DVM, in this case CountryName
5) Default value: Configure the default value when country code does not found in DVM.

This is how the DVM can be configured in Oracle Service Bus pipleline.

This is time to test Service.

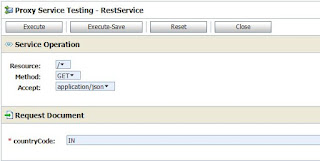

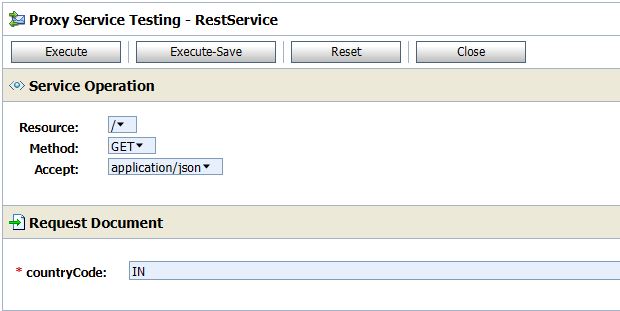

Enter the country code(IN) which exist in DVM and click on Execute button

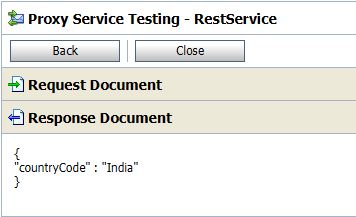

see the Country Name(India) corresponding to the Country Code(IN) should fetch from DVM.

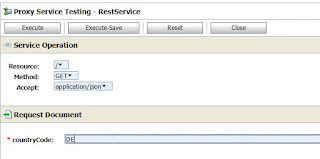

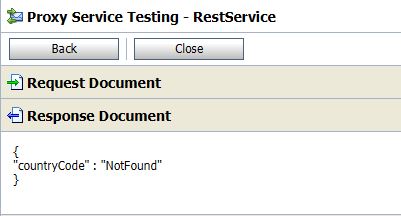

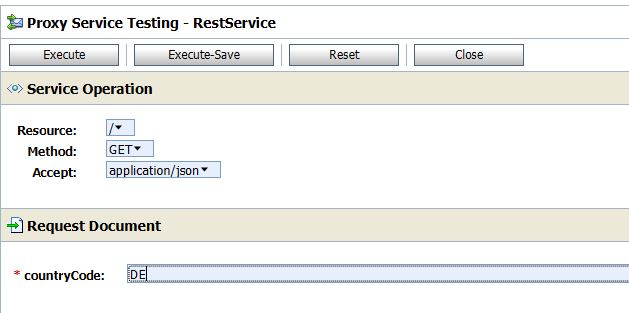

Run service again and enter country code which doesn’t exist in the DVM

This is how Data Value Map(DVM) can be used in Oracle Service Bus.
