Apply SSL certificate on API CS physical Gateway node

High level steps to configure SSL in API CS physical Gateway

Create Java KeyStore (JKS) and generate key
Generate a Certificate Signing Request (CSR)
Send the CSR file to CA to issue the certificate
Import Certificates (Root, Intermediate(if any) & Server)
Import API CS Certificate into Keystore
Configure SSL in WebLogic Server

Change KeyStore type in WebLogic Server
Specify path of Identity KeyStore and Trust KeyStore
Specify Private Key Alias in WebLogic Server
Enable SSL in WebLogic Server

Update Hostname Verification property
Update the https URL of Gateway in API CS management console
Import backend Services certificate into Keystore (if backend service is https enabled)
Test API

Create Java KeyStore (JKS) and generate key

Keytool utility is a Key and Certificate Management Tool and is available in $JAVA_HOME/bin. Before we start, set JAVA_HOME and PATH variables. Use below two command to set JAVA_HOME and PATH variables

export JAVA_HOME=/usr/jdk1.8.0_171

export PATH=$JAVA_HOME/bin:$PATH

In this step, we’ll create Key Store and private key. Use below command to generate Key Store

keytool -genkey -alias <alias> -keyalg RSA -keysize 2048 -keypass <private_key_password> -keystore <keystore_name>.jks -storepass <keystore_password> -storetype pkcs12

Option	Description
genkey	Generate private keys
alias	Represent alias name of the keys
keyalg	Represent key algorithm. If not specified DSA algorithm will be used as default
keysize	Size of the private key
keypass	Represent the private key password
keystore	Used to provide keystore name
storepass	Used to provide keystore password
storetype	Used to give key store type

For example:

keytool -genkey -alias myweblogic -keyalg RSA -keysize 2048 -keypass welcome1 -keystore mystore.jks -storepass welcome1 storetype pkcs12

Note: When we’ll import signed certificate (issued by CA) in KeyStore then same alias myweblogic must be used.

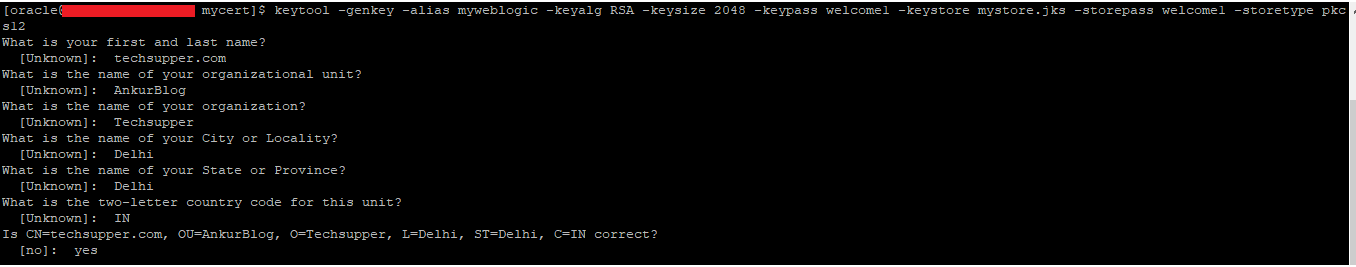

Once we run the command, enter below information

First Name and Last Name (CN): It should be server name for which certificate is being generated. For example (techsupper.com)
Organization Unit (OU): Represent the Company organizational unit. For example (AnkurBlog)
Organization (O): Represent the Organization. For example (Techsupper)
City or Locality (L): Represent the organization city. For example (Delhi)
State or Province (ST): State of the organization. For example (Delhi)
Country (C): Represent of the organization country. For example (IN)

Generate a Certificate Signing Request (CSR)

Next step is to create a Certificate Signing Request (CSR).

Use the same alias (myweblogic) which was used to generate keystore (mystore.jks)

keytool -certreq -alias <alias> -keystore <keystore_name>.jks -storepass <keystore_password> -file <certificate_request>.csr

Option certreq signifies that we are generating certificate signing request (CSR) file.

For example:

keytool -certreq -alias myweblogic -keystore mystore.jks -storepass welcome1 -file myweblogiccsr.csr

mystore.jks is the kyestore which was created in the first step and welcome1 is the password which was used to create mystore.jks file

Send the CSR file (myweblogic.csr) to CA to issue the certificate

Send CSR file to certifying authority to issue the certificate.

Import Certificates (Root, Intermediate(if any) & Server)

Once we receive the certificate for the server then we must import certificate of Authority issued the certificate (before importing certificate issued by CA).

Use below command to import root certificate into Keystore file (mystore.jks)

keytool -import -trustcacerts -alias <rootcacert_alias> -keystore <keystore_name>.jks -file <rootCA_file>.crt -storepass <keyStorePassword>

For example:

keytool -import -trustcacerts -alias rootcacert -keystore mystore.jks -file AddTrustExternalCARoot.crt -storepass welcome1

import is used to import the certificate in keystore
trustcacerts signifies that we are importing the trusted certificate
alias must be different as used while generating keystore file
file AddTrustExternalCARoot.crt is the file that contains the certificate of Root Certifying Authority

User below command to import intermediate certificate into Keystore file (mystore.jks) if any

keytool -import -trustcacerts -alias <intermediatecacert_alias> -keystore <keystore_name>.jks -file <intermediateCA_file>.crt -storepass <keyStorePassword>

For example:

keytool -import -trustcacerts -alias intermediatecacert -keystore mystore.jks -file USERTrustRSAAddTrustCA.crt -storepass welcome1

Finally import server certificate. Below command will be used to import the server certificate

keytool -import -alias <myAlias> -keystore <keystore_name>.jks -file <servercert>.crt -keypass <keyPassword> -storepass <keyStorePassword>

For example:

keytool -import -alias myweblogic -keystore mystore.jks -file techsupper_com.crt – keypass welcome1 -storepass welcome1

alias myweblogic should match with Alias used during generation of Key file techsupper_com.crt is a file that contains the certificate of server issued by CA

The certificate chain has been added into the keystore file (mystore.jks). To list certificate stored in Keystore, use below command

keytool -list -v -keystore mystore.jks -storepass welcome1

Import API CS Certificate into Keystore

API CS certificate should be imported into the keystore (mystore.jks) for the communication between API CS and GW node over SSL. Even if API CS is not SSL enabled even then API CS certificate should be imported into keystore. The same command wil be used to import API CS certificate as we imported intermediate / root certificate. First download the certificate from API CS management console and then import into mystore.jks

Note: Check the blog to see how to download certificate from browser

Configure SSL in WebLogic Server

In this blog, we have created a trust store and identity store in the same file (mystore.jks)

Change KeyStore type in WebLogic Server

Login into the Physical Gateway WebLogic Server and navigate to Servers -> managedServer1-> Configuration -> Keystore

Click on Change button and select Custom Identity and Custom Trust. Once selected Click on Save button

Specify path of Identity KeyStore and Trust KeyStore

In our case Trust Store (store containing Root and Intermediate CA) and Identity Store (store containing server certificate) are same i.e. <keystore_name>.jks (mystore.jks in our case).

Again Navigate to Servers -> managedServer1 -> Configuration -> Keystore tab

Enter below information and click on Save button

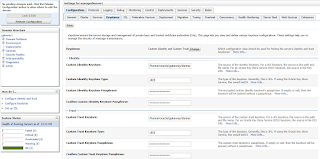

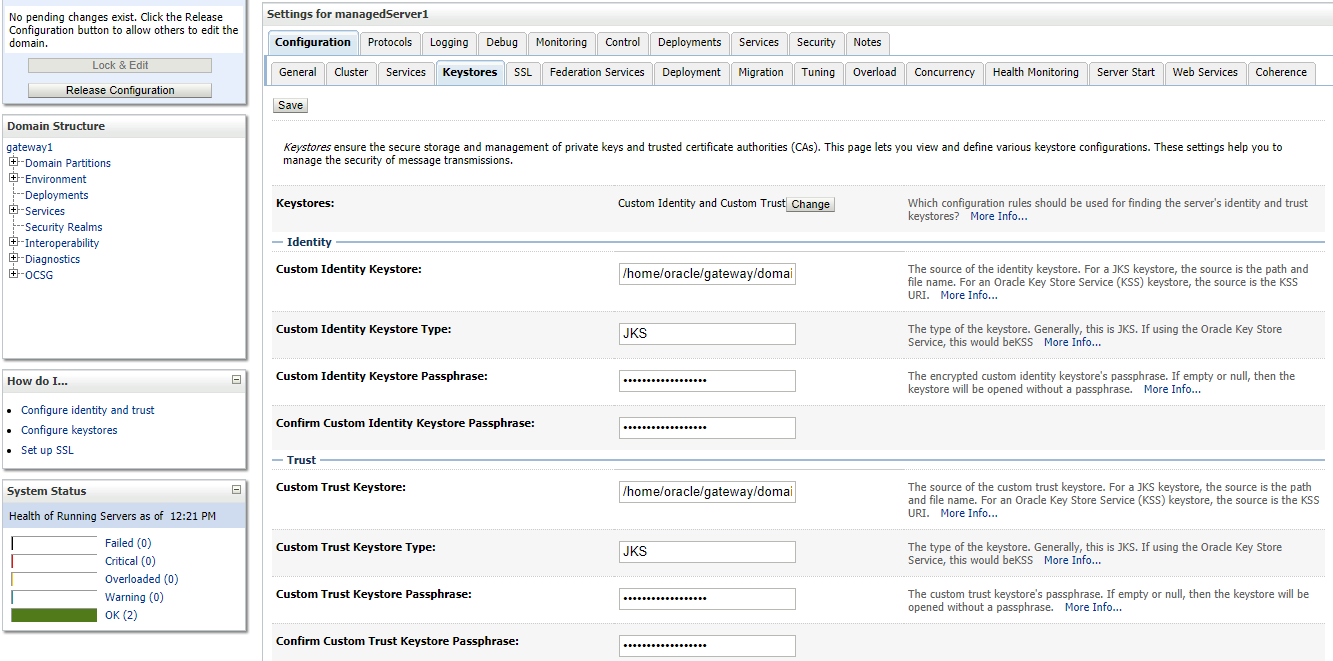

Custom Identity Keystore: Path of Keystore. In our case this is /home/oracle/gateway/domain/gateway1/security/mystore.jks

Custom Identity Keystore Type: jks

Custom Identity Keystore Passphrase: Password of Keystore. In our case this is welcome1

Confirm Custom Identity Keystore Passphrase: Password of Keystore. In our case this is welcome1

Custom Trust Keystore: Path of Keystore. In our case this is /home/oracle/gateway/domain/gateway1/security/mystore.jks

Custom Trust Keystore Type: jks

Custom Trust Keystore Passphrase: Password of Keystore. In our case this is welcome1

Confirm Custom Trust Keystore Passphrase: Password of Keystore. In our case this is welcome1

Specify Private Key Alias in WebLogic Server

Navigate to Servers -> managedServer1 -> Configuration -> SSL tab

Enter below information and click on Save button

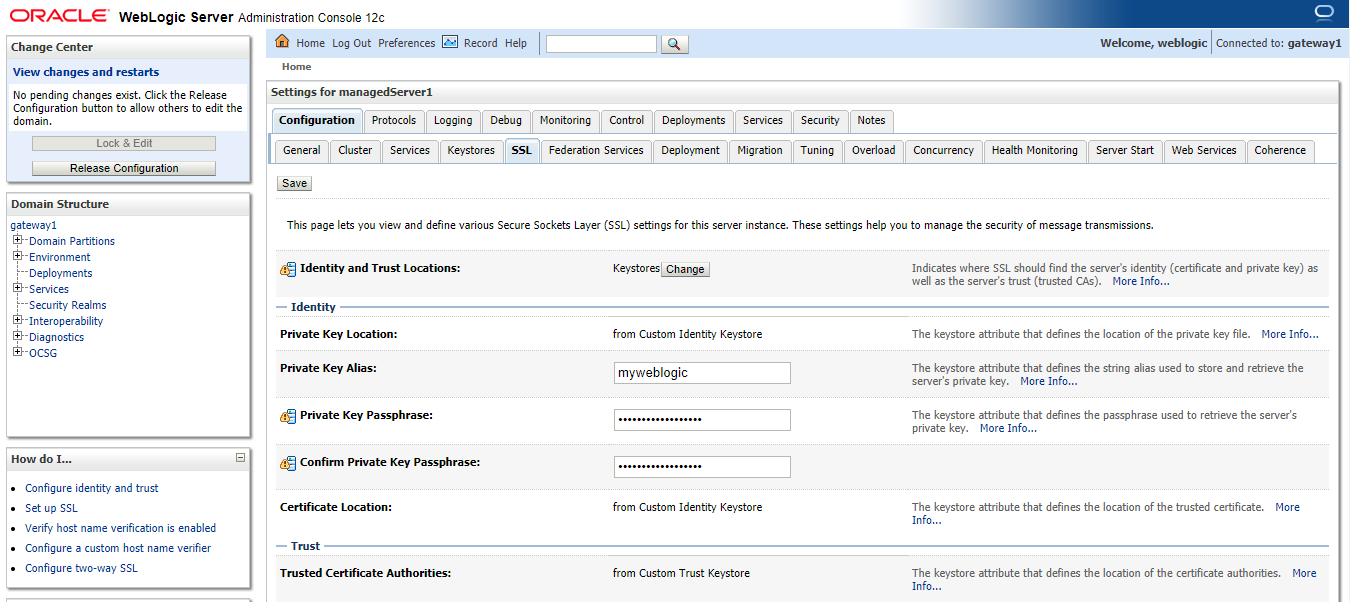

Private Key Alias: Alias of the Private key. In our case this is myweblogic

Private Key Passphrase: Password of Private Key. In our case this is welcome1

Confirm Private Key Passphrase: Password of Private Key. In our case this is welcome1

Enable SSL in WebLogic Server

Finally, enable SSL in WebLogic Server. Navigate to Servers -> managedServer1 -> Configuration -> General

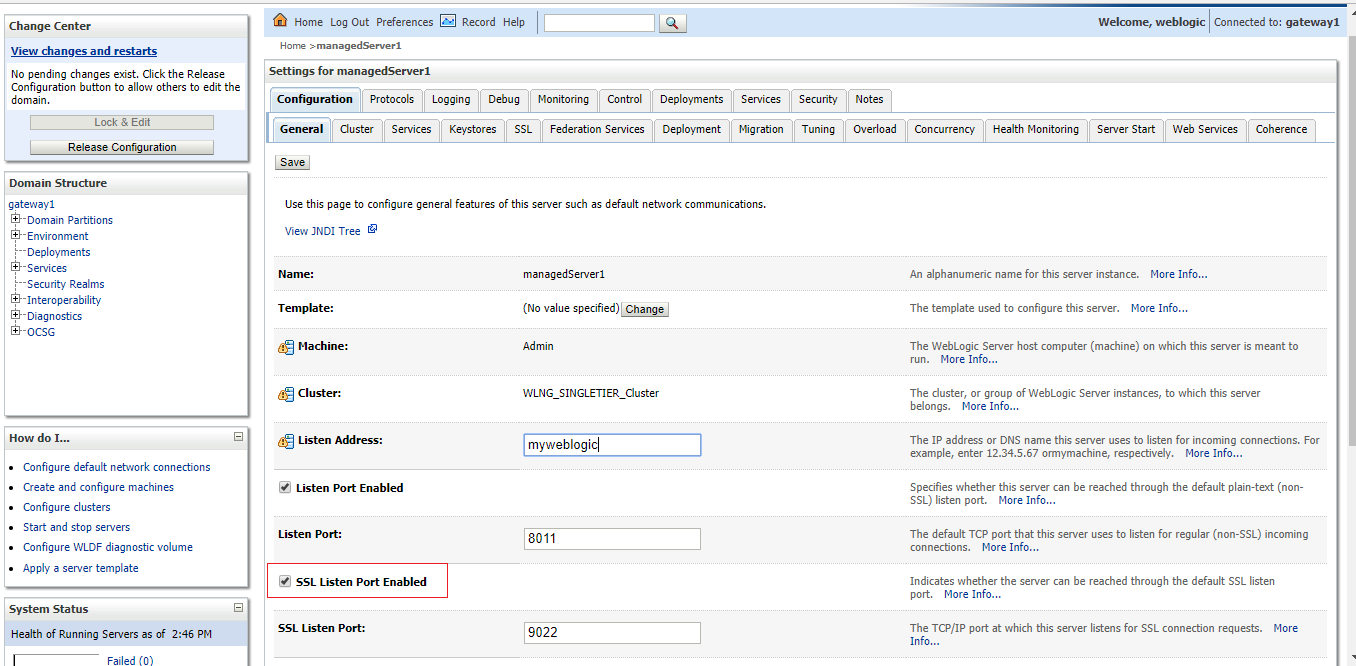

Check the SSL Listen Port Enabled checkbox

Update Hostname Verification property

Login into the Physical Gateway WebLogic Server and navigate to Servers -> managedServer1 -> Configuration -> SSL. Click on Advance and change the Hostname verification property to None

Update the https URL of Gateway in API CS management console

Follow below steps to change the https URL in logical gateway

Login into the API CS management portal
Navigate to the Gateways tab and click on the Gateway which need to be configured with https url
Select the nodes tab and enter the domain name in HTTPS text box

Click on Save button

Import backend Services certificate into Keystore (if backend service is https enabled)

This is optional step. It is required only if the service which is configured in API CS is https enabled. Hit the https service using browser and download the certificate from browser. Check how to download certificate from browser. Import the downloaded certificate in mystore.jk file. The steps will be same as we imported root / intermediate certificate in previous step.

Note: Restart Physical Gateway node post completing all the steps to make the change effected

Test API

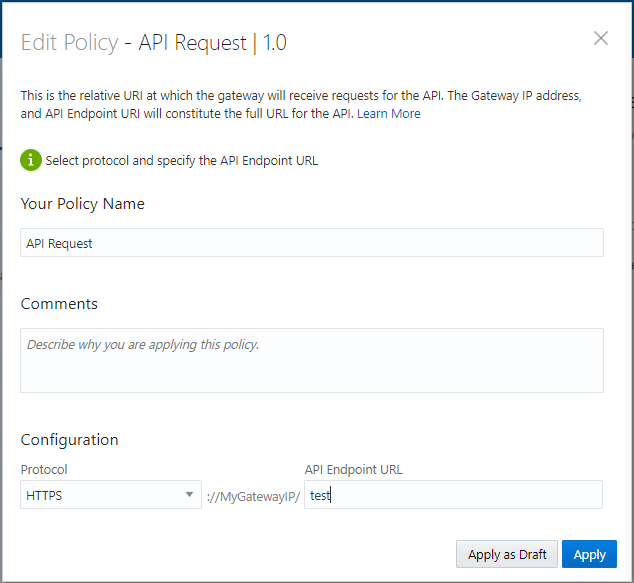

Once all steps completed successfully, deploy the API with https protocol. Please see the blog how to configure and deploy API in API CS
