For each action in Oracle Service BUS 12c

I want this post to show you how we can use for each component of the OSB 12c to iterate through a list of users.

Suppose we have the payload

<USERS>
<USER>
<ID>1</ID>
<NAME>Ankur</NAME>
</USER>
<USER>
<ID>2</ID>
<NAME>Ankit</NAME>
</USER>
</USERS>

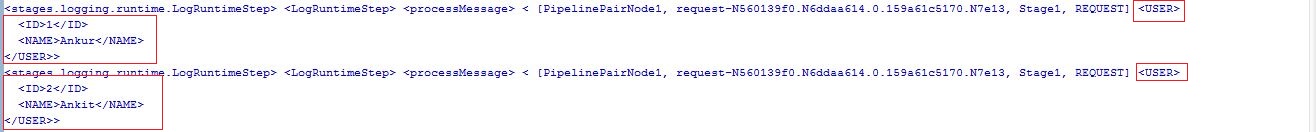

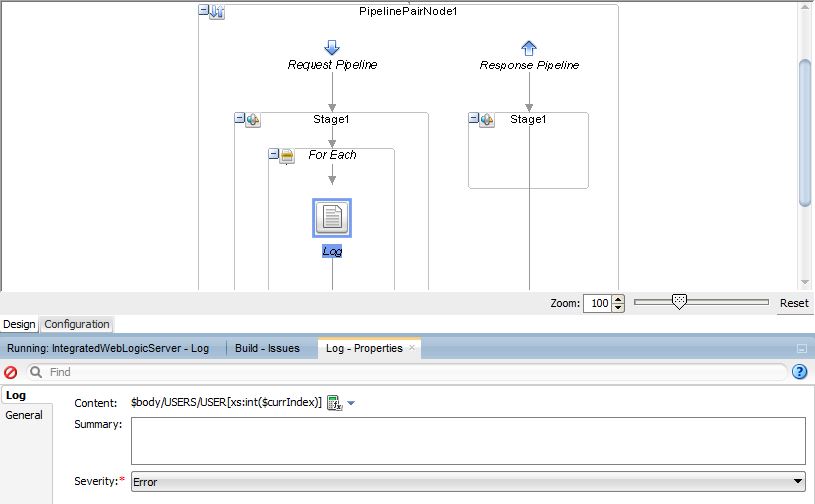

and want to log the USER node.

Let’s go through an example and see how For Each component works:

1) Create a Service Bus application with Service Bus project

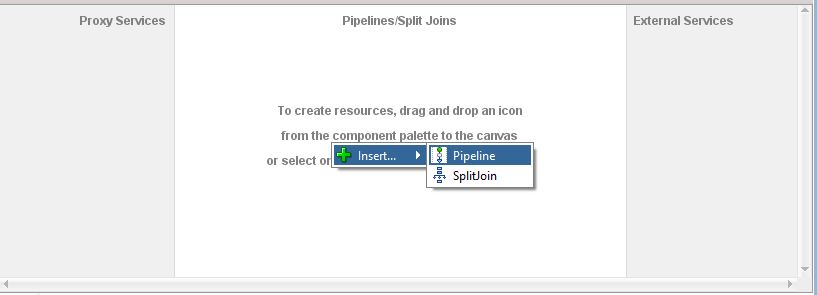

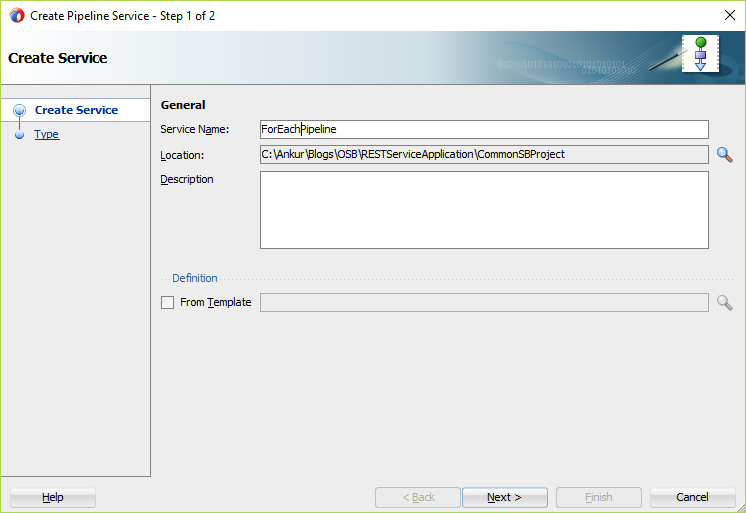

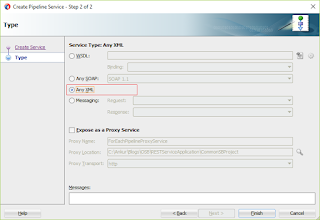

2) Create a pipeline

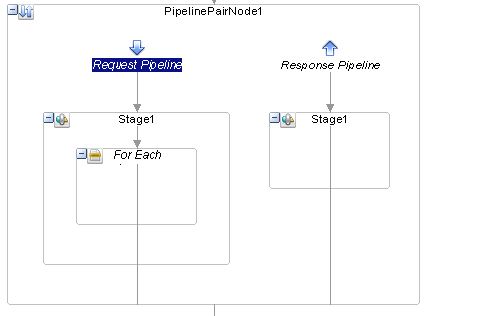

3) Double click on the pipeline and drag and drop the pipeline pair node. Drag and drop the For Each component from the component pallet under the Request stage:

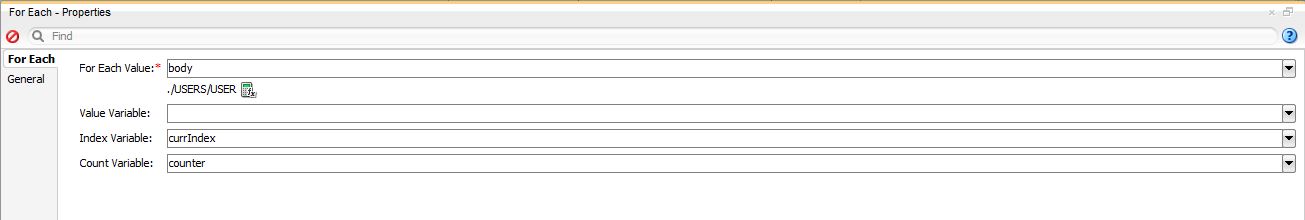

4) Configure the For Each properties like below:

Let’s see the properties:

• For Each Value: Configure the variable that need to iterate. In our case we have configured body as we have the payload in our body only.
• Expression: Which node you need to iterate. In our case we have configured ./USERS/USER as we need to iterate each USER node from the payload.
• Value Variable: You can leave it blank, not required.
• Index Variable: This is the variable that keeps the track of current index.
• Counter Variable: This is the variable that contains the total no of nodes available in the payload.
