Salesforce integration in Oracle Integration Cloud

In this article, we are going to demonstrate how to subscribe to Salesforce events in Oracle Autonomous Integration Cloud (AIC). Once the events are received in AIC the data can be pushed into any on-premise / SaaS applications

In this blog, we’ll subscribe to the Salesforce Opportunity events and inserts the data into Oracle database. Same ways once the data received in AIC from SFDC the data can be synchronized into any SaaS application.

Below are some pre-requisites to complete this article

Salesforce instance subscription. If you don’t have please subscribe for the free trial from here
Oracle Authonous Integration Cloud instance subscription. If you don’t have please subscribe for the free trial from here
Oracle Database and create below table

CREATE TABLE “HR”.”OPPORTUNITY”

( “OPPORTUNITYID” VARCHAR2(200 BYTE),

“OPPORTUNITYNAME” VARCHAR2(200 BYTE),

“ACCOUNTNAME” VARCHAR2(200 BYTE),

“AMOUNT” NUMBER,

“STAGE” VARCHAR2(200 BYTE),

“OWNER” VARCHAR2(200 BYTE)

)

Oracle AIC agent
Please read the article before starting this article as it will give you insights on how to create workflow rules and outbound messaging in SFDC

Let’s get started and see how to achieve the use case

Login into the Oracle AIC instance and move to the Integrations
Move to the Integrations and click on the Create button

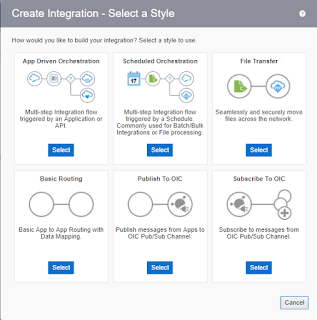

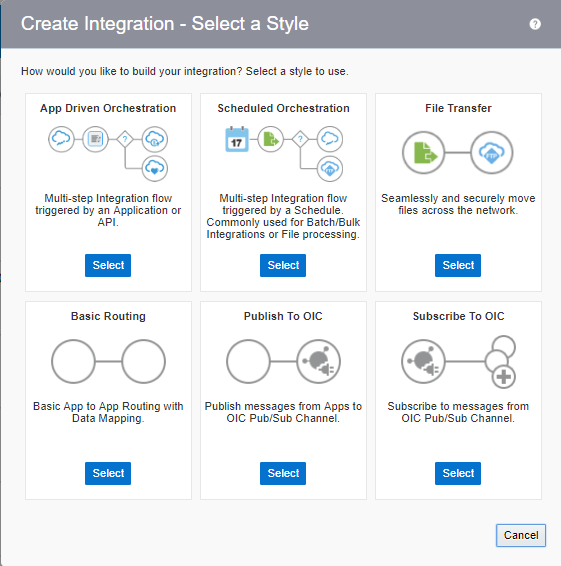

Select App Driven Orchestration pattern

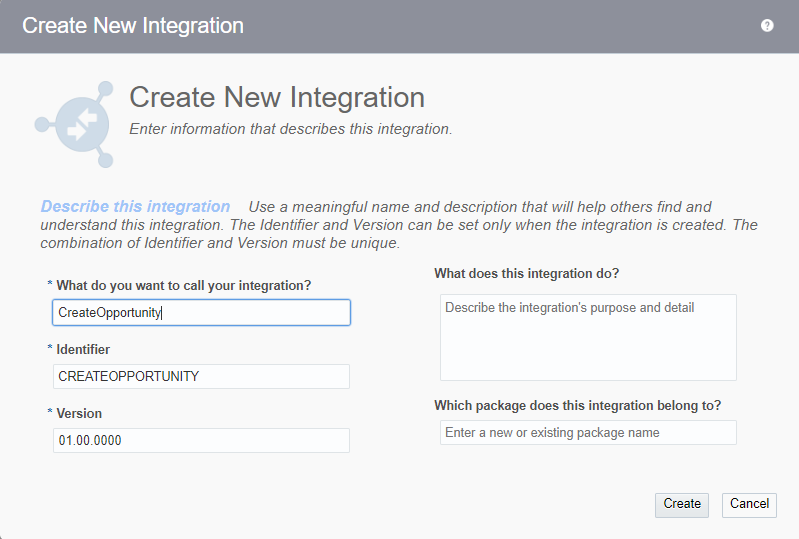

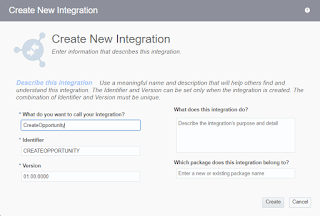

Enter Integration name as CreateOpportunity and click Create button

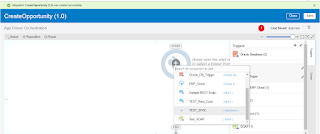

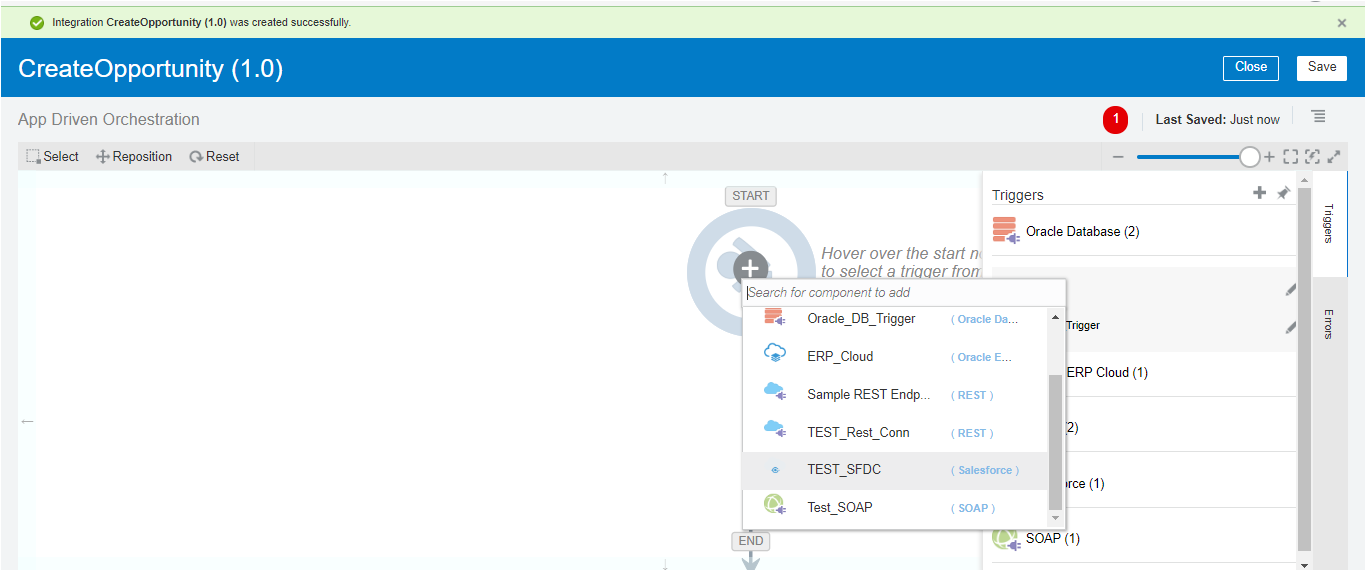

Click on the + sign and select SFDC adapter as a source

Enter endpoint name as GetOpportunity and click Next button

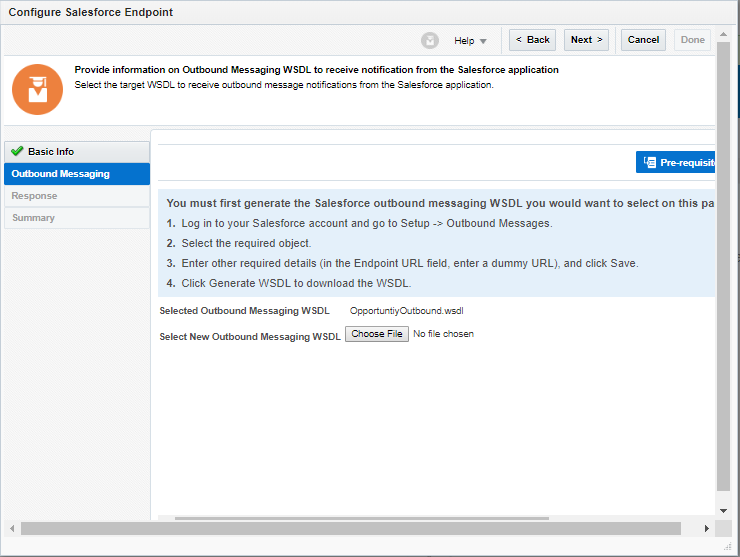

Select the Salesforce outbound WSDL using the Choose file button. This is the same WDL which we exported from the Salesforce in the blog. Once selected, click on Next button

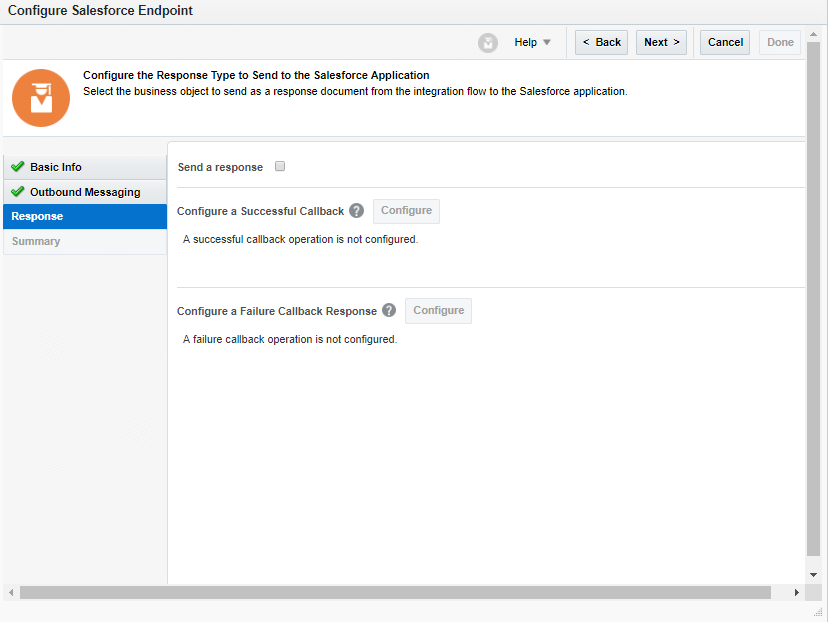

Deselect the Send a Response checkbox and click Next

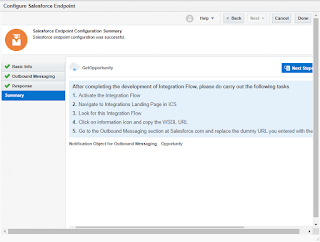

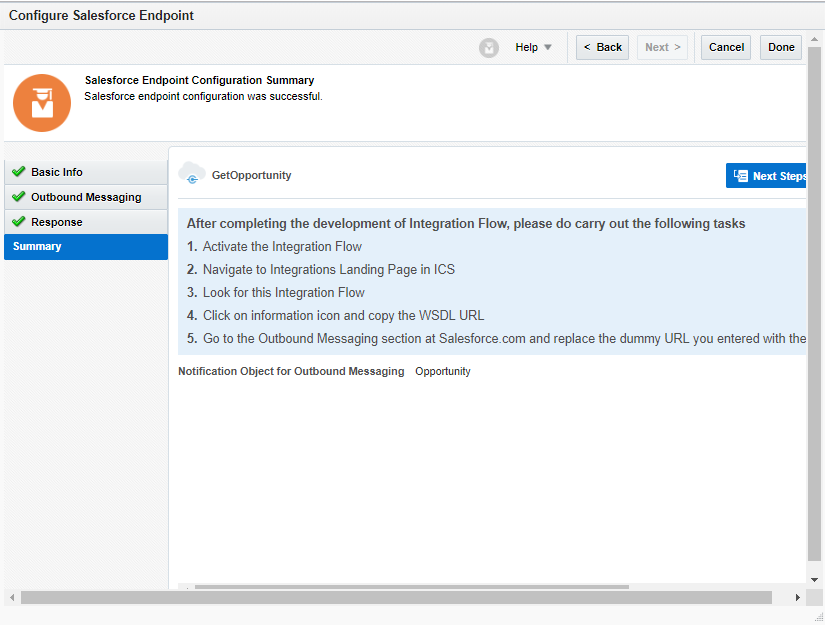

Click Done button

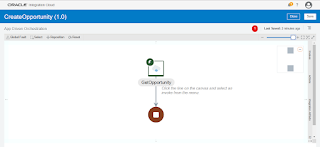

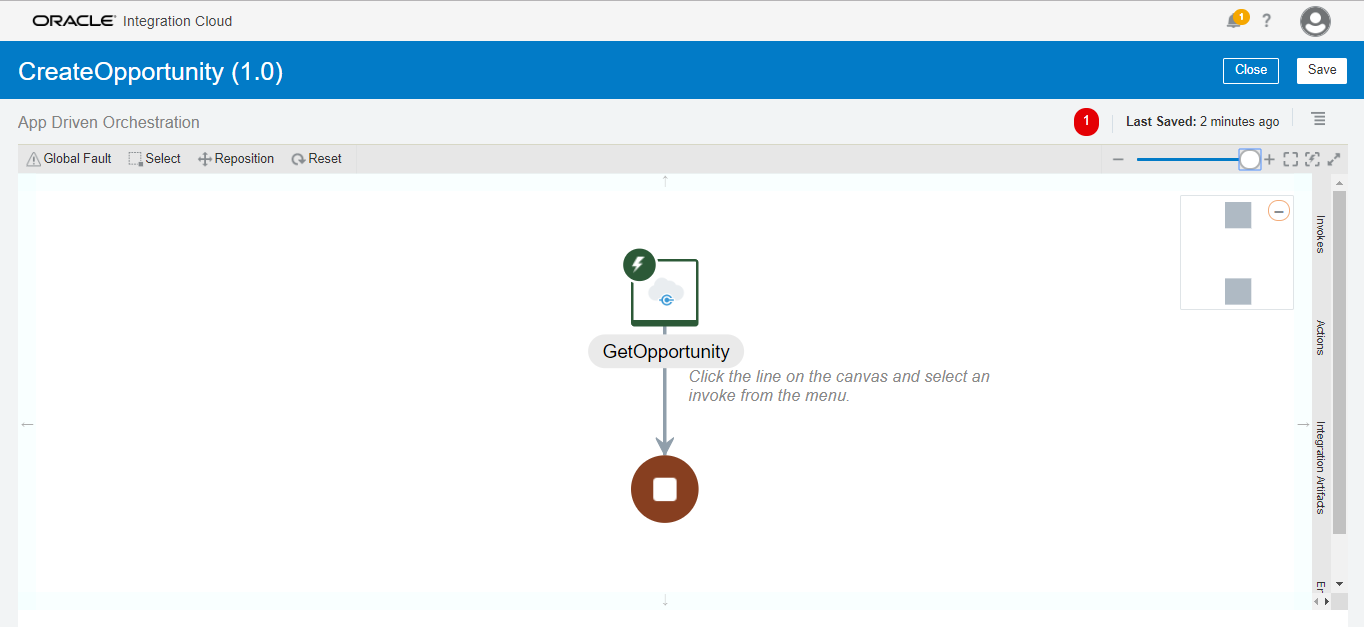

After this step, integration canvas will look this

Select DB adapter

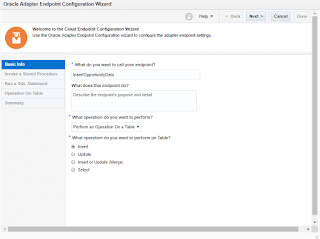

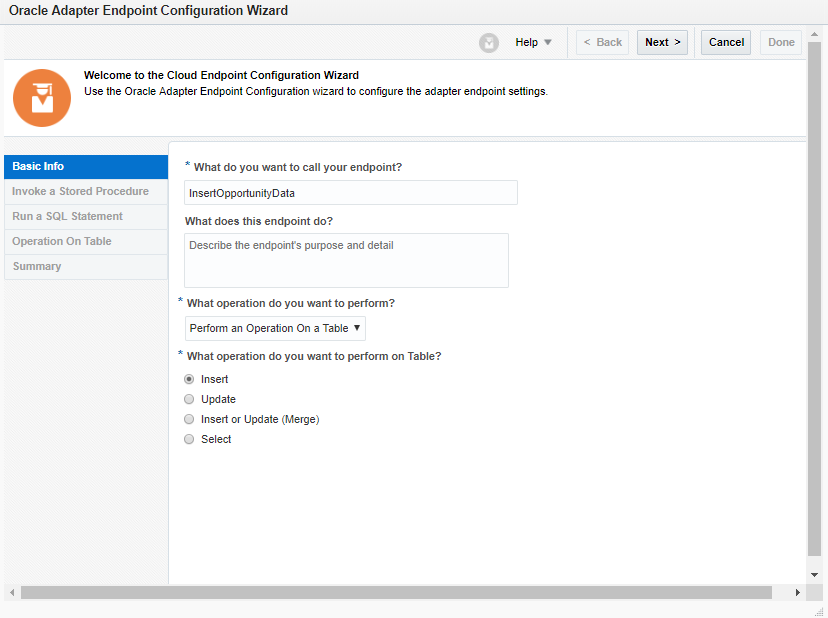

Enter below information and click Next
- What do you want to call your endpoint: Enter endpoint name of your choice. In this case, we have entered InsertOpportunityData
- What operation do you want to perform: Select “Perform an Operation on a Table” and thereafter select “Insert” Operation

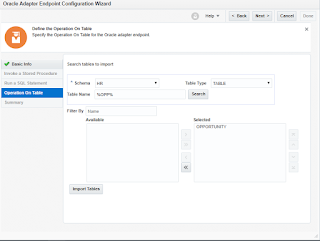

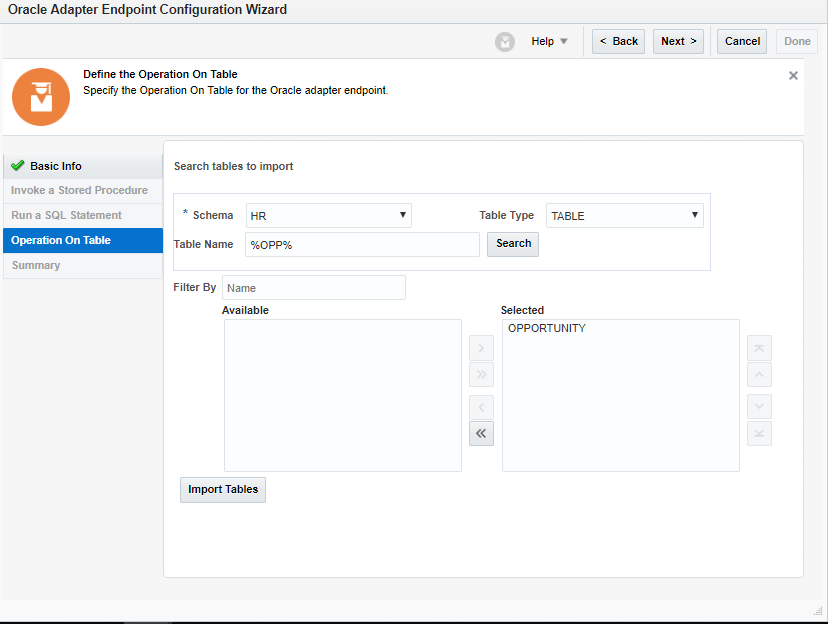

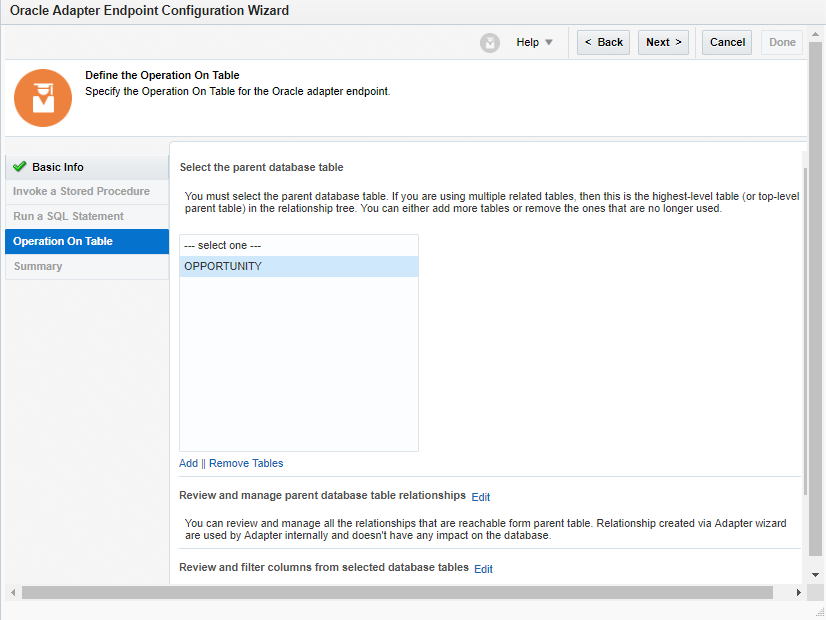

Select below information and click on Import Tables button
- Schema: Since the table (Opportunity) in which data will be inserted resides under HR schema, so select HR schema
- Table Type: TABLE
- Table Name: Table name is “Opportunity”, so search the same and move to the Available pane

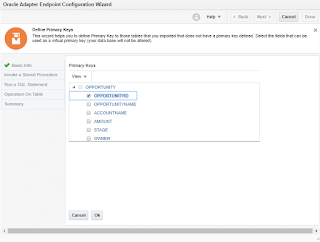

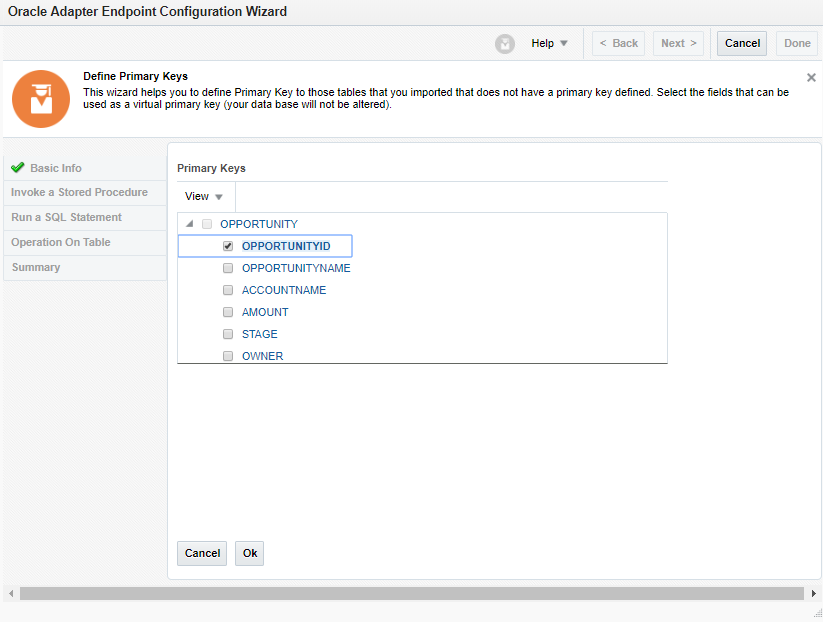

Select “OPPORTUNITYID” as the primary key column and click OK button

Select the Next button

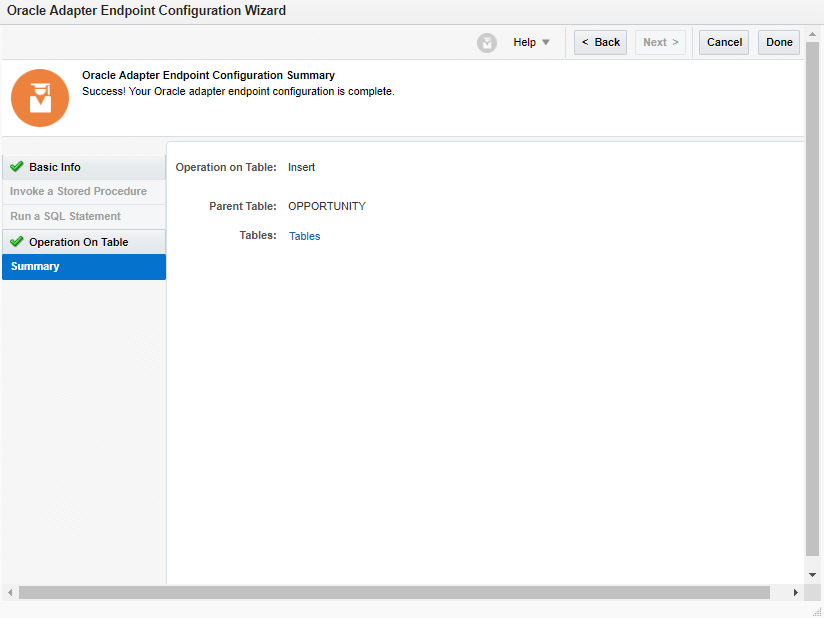

Select the Done button

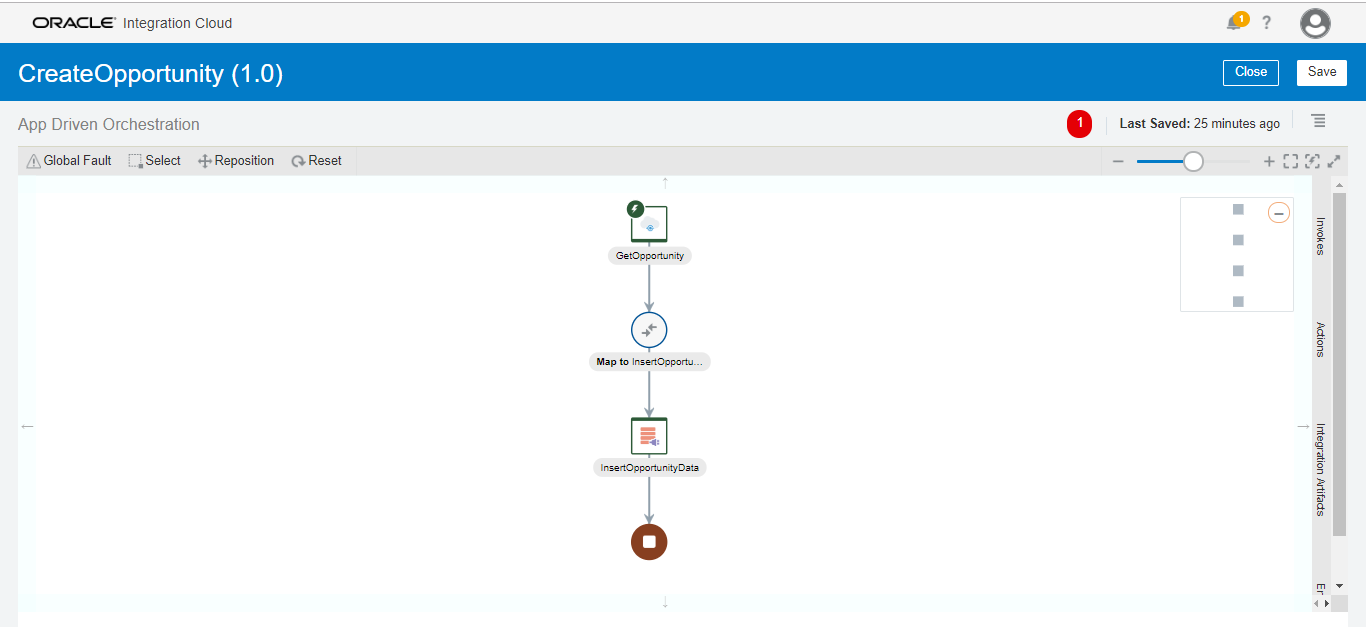

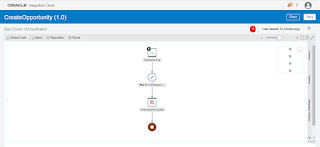

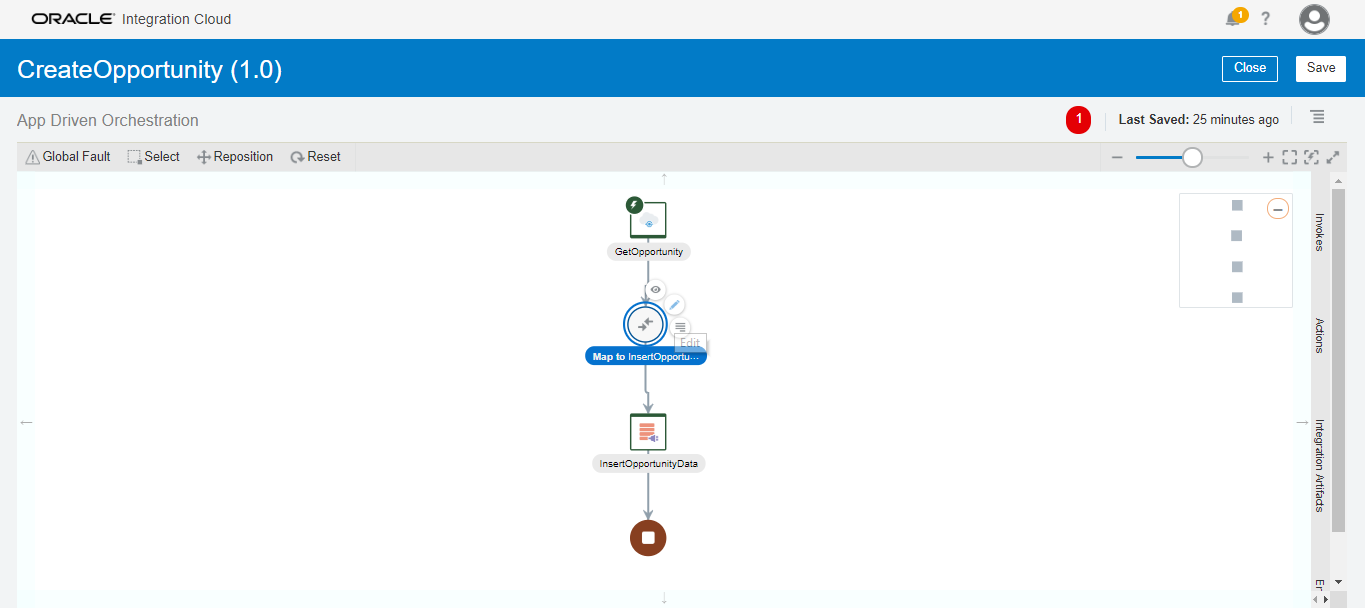

After this step, integration canvas will look like below

Edit the InsertOpportunityData mapper

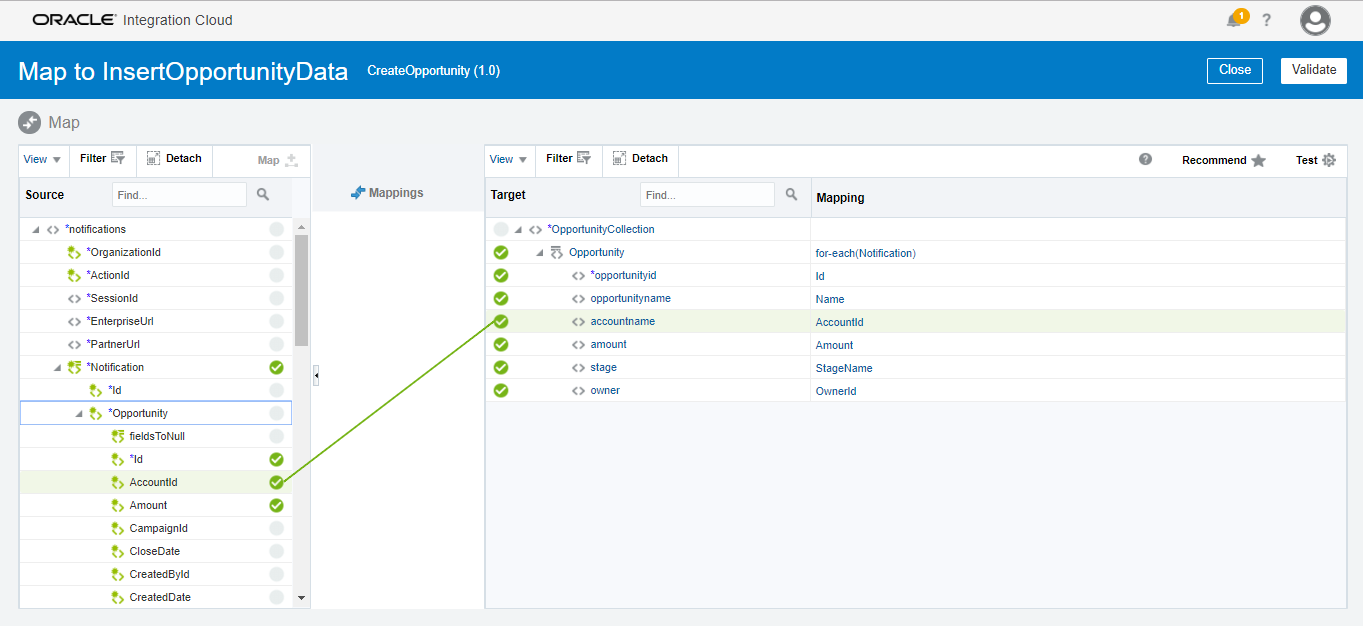

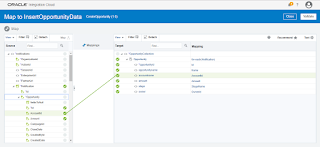

Map the required columns as shown in the below image. Notification and Opportunity object both are repeated element so drag Notification onto Opportunity object
- Id –> OpportunityId
- Name –> OpportunityName
- AccountId –> accountname
- Amount –> amount
- StageName –> stage
- OwnerId –> owner
Just validate the mapper and close

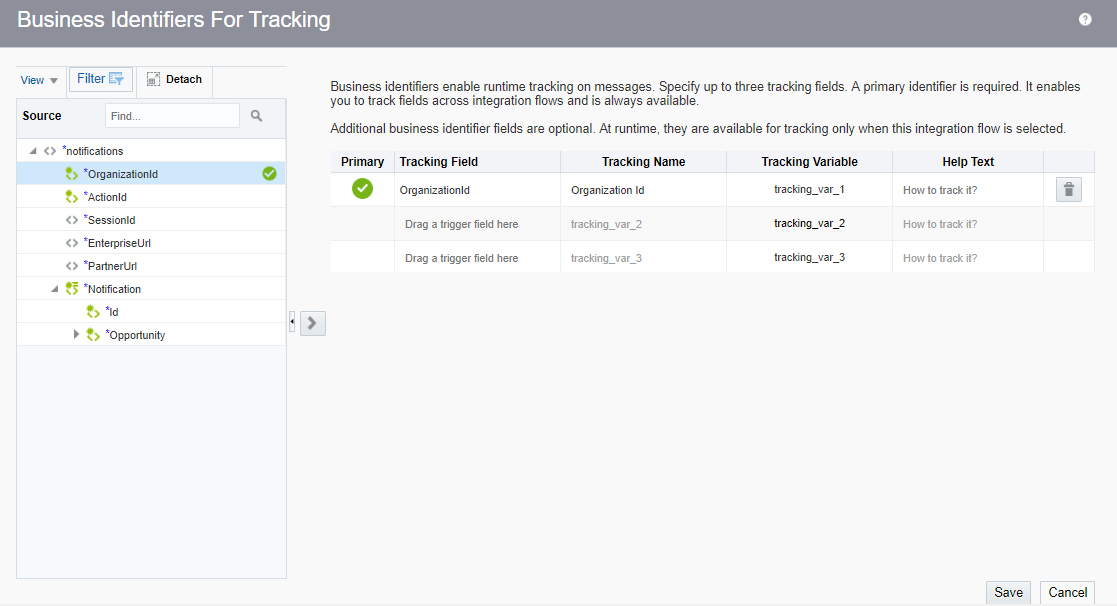

Enable Tracing

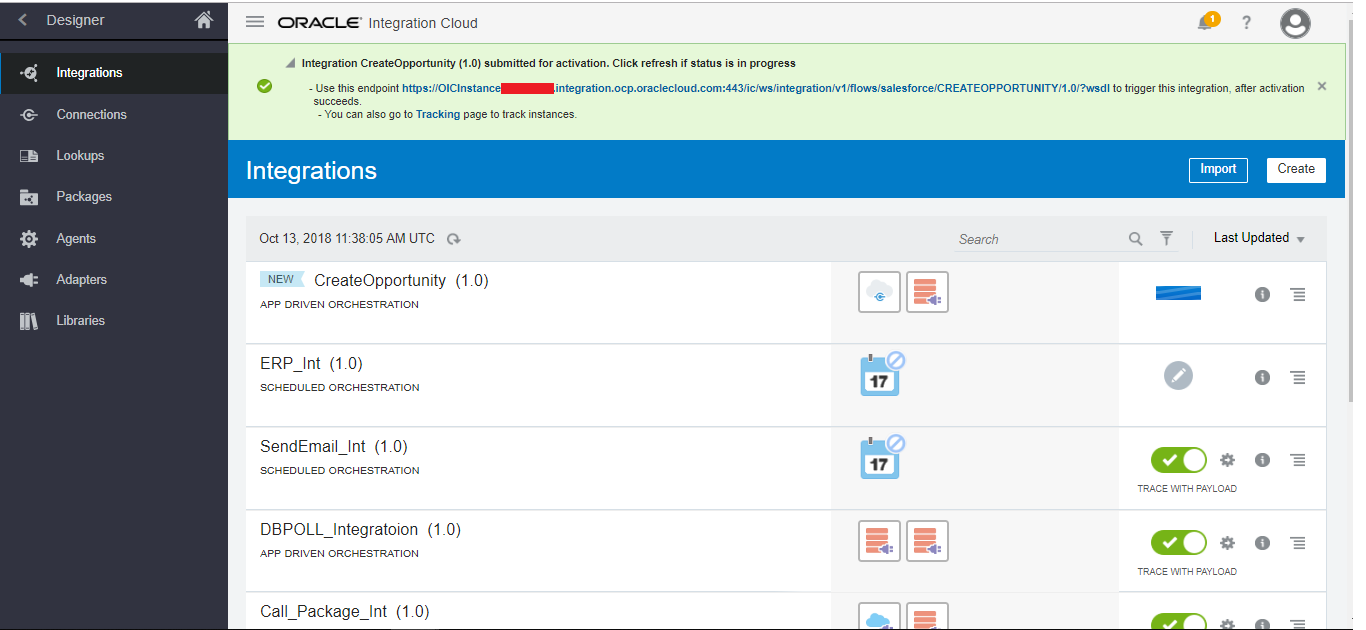

Integration is completed now. Just save the integration and activate. Once integration is successfully activated, notice the WSDL endpoint shown on the top

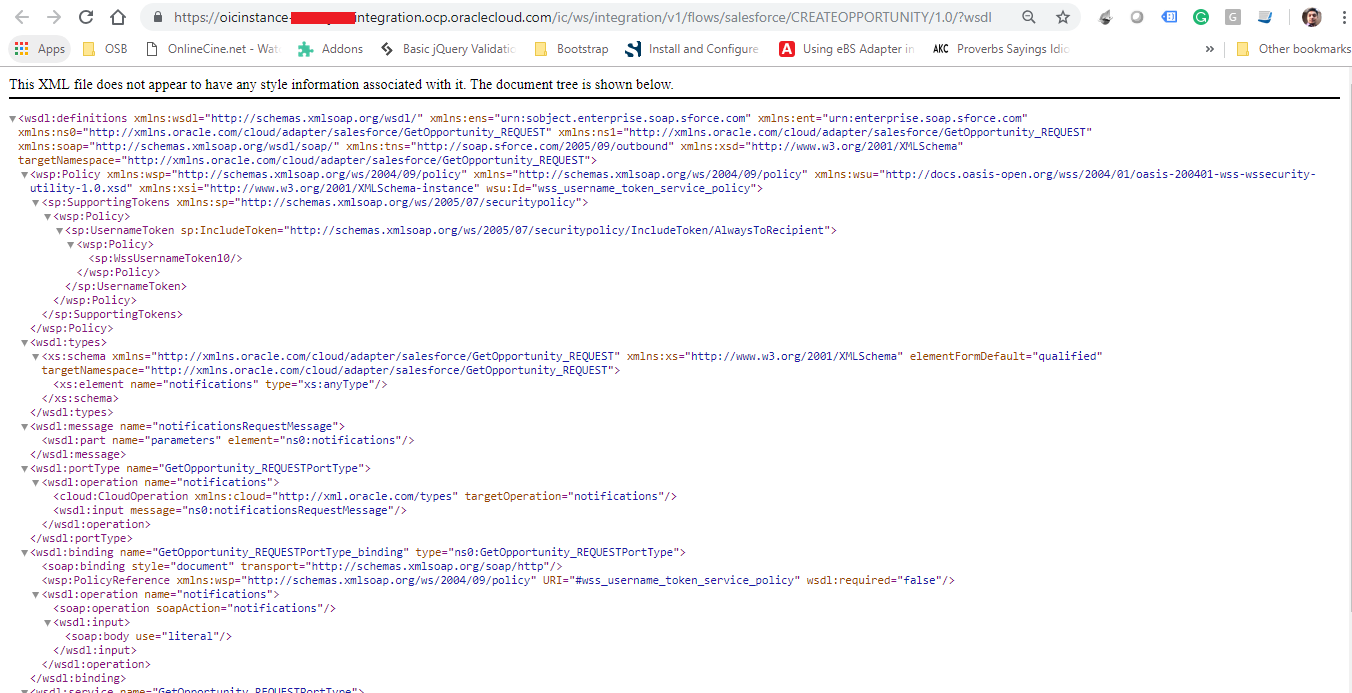

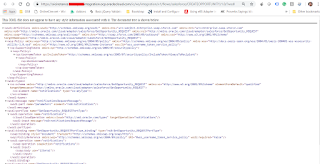

Click on the WSDL link which will open on the new tab. Copy the WSDL URL till last forward slash (/)

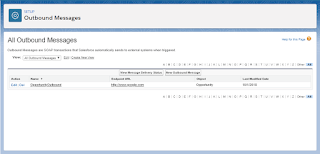

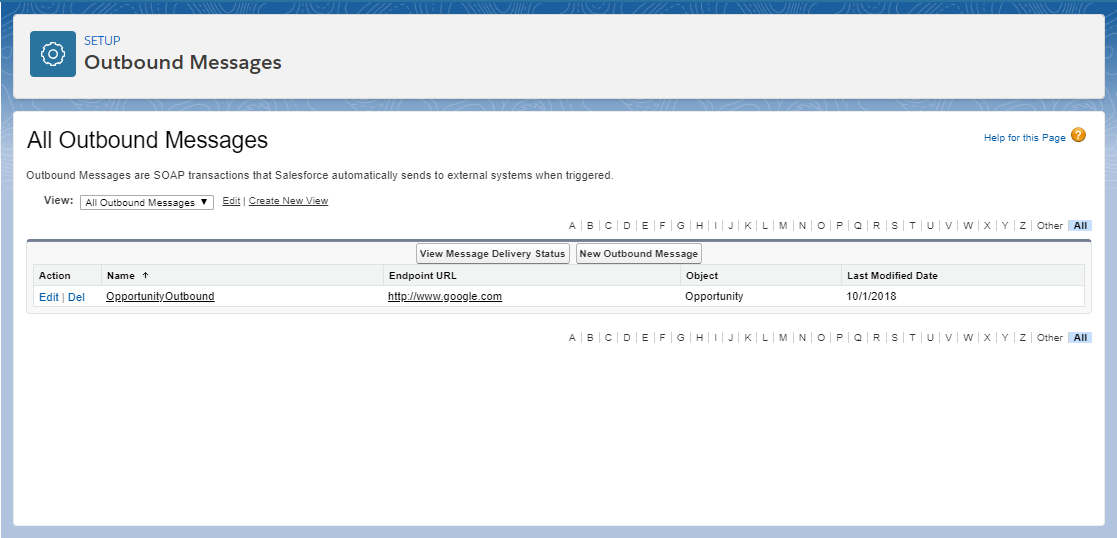

Go back to the SFDC and search the Outbound message which we create in the previous blog

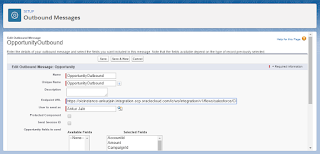

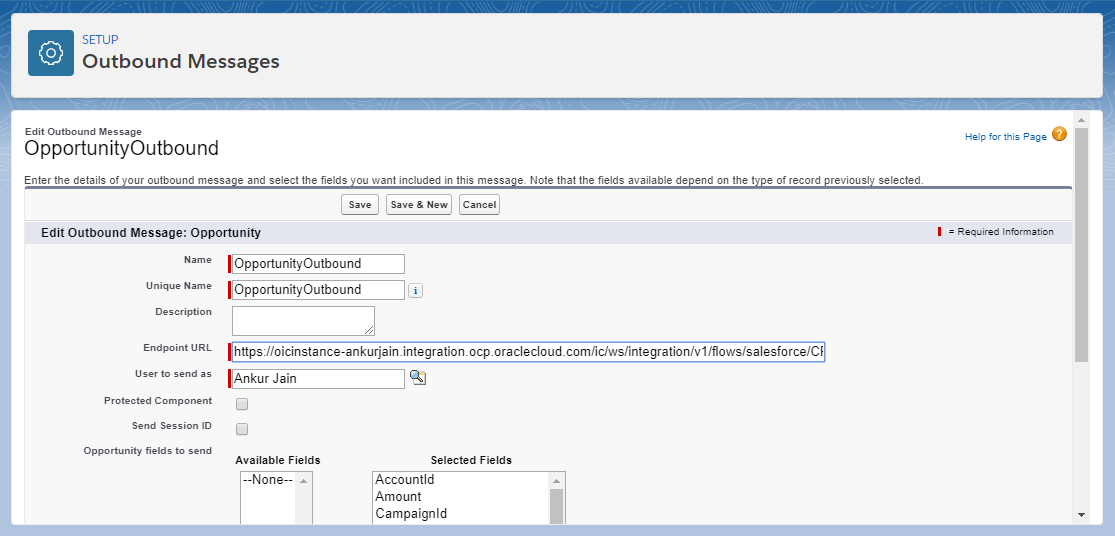

Enter the AIC WSDL endpoint in the Endpoint URL and click Save button

Let’s create new Opportunity in SFDC. Navigate to the Opportunity object and click on New button

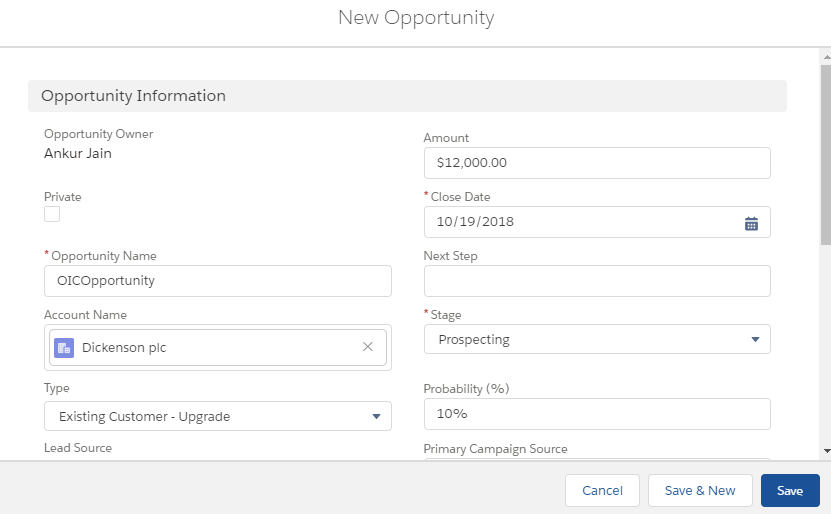

Enter Opportunity details and click Save button. Make sure the Stage is “Prospecting“. It is because during writing the workflow rules in SFDC we selected the criteria that the Outbound Message will be triggered only when Stage is equal to “Prospecting”
