Copy files from one SFTP to another in OIC

In this article, I will show you how to copy files from one SFTP to another irrespective of the type of files.

Let’s see how to achieve this.

• Create a scheduler integration
• Drop the source FTP adapter and enter the name of the endpoint(ListFiles)

• Configure properties as below and click on the Next button
  • Select Operation: List File
  • Input Directory: Enter the directory from which files to be listed
  • File Name Pattern: *

• Complete the wizard
• Drop For-Each activity just below the FTP adapter and configure properties as below
  • Name: LoopOverTheFiles
  • Repeating Element: Drop the repeated element of ListFile Response
  • Current Element Name: CurrentFile

• Drop the same source FTP adapter(under For each), enter the name of endpoint(ReadFile) and click the Next button

• Configure properties as below and click on the Next button
  • Select Operation: Read File
  • Input Directory: Enter the directory from where the files to be read
  • File Name Pattern: abc.tmp

• Select No radio button from Do you want to define the schema for this endpoint? and click the Next button

• Complete the wizard
• Edit the ReadFile mapper and do the mapping as below:
  • CurrentFile/File/directory ——>  SyncReadFile/FileReadRequest/directory
  • CurrentFile/File/filename  ——>  SyncReadFile/FileReadRequest/filename

• Drop target FTP adapter, enter the name of endpoint(TargetFTP) and click the Next button

• Configure properties as below and click on the Next button
  • Select Operation: Write File
  • Specify an Onput Directory: Enter the directory where the file to be written
  • File Name Pattern: abc.tmp

• Select No radio button from Do you want to specify the structure for the contents of the file nd click the Next button

• Edit the TargetFTP mapper and map below fields:
  • ReadFile/SynchReadFileResponse/FileReadRespons/FTPResponseHeader->filename —> WriteFile/OutboundFTPHeaderType/filename
  • ReadFile/SynchReadFileResponse/FileReadResponse/ICSFile/FileReference —> WriteFile/ICSFile/FileReference
  • ReadFile/SynchReadFileResponse/FileReadResponse/ICSFile/Properties/filetype —> WriteFile/ICSFile/Properties/filetype
  • ReadFile-/SynchReadFileResponse/FileReadResponse/ICSFile/Properties/filename—> WriteFile/ICSFile/Properties/filename

• All the required configurtion is completed. Let’ move ahead and test the integration.

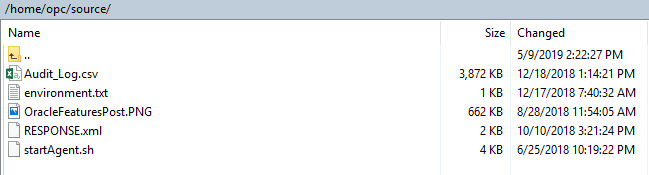

• Below are the files on my source FTP and after the integration is executed, all these files will be copied to another FTP.

• Submit the integration and see all files from source FTP should be copied to target FTP
